iCelsius iCelsius PRO

* 아이폰, 아이패드, 아이팟 터치 를 위한 온도센서
* 빠르고 정확한 온도 측정

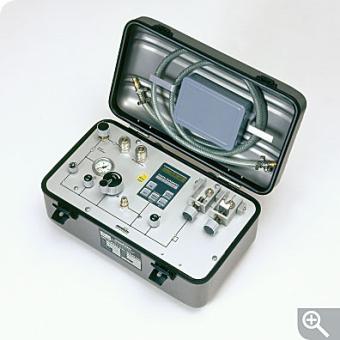

OM-HM 481

Application: calibration of tyre pressure manometers

Equipment: REVUE THOMMEN AG digital manometer HM 28

Full-scale reading: 10 or 17 bar

The portable OM 481.000 measurement case has been specially designed for calibrating tyre pressure manometers. The measurement case is equipped with a REVUE THOMMEN AG digital manometer of type series 28.

OM-HM 481

Application: calibration of tyre pressure manometers

Equipment: REVUE THOMMEN AG digital manometer HM 28

Full-scale reading: 10 or 17 bar

The portable OM 481.000 measurement case has been specially designed for calibrating tyre pressure manometers. The measurement case is equipped with a REVUE THOMMEN AG digital manometer of type series 28.

계단식 저항기 RBB

* 5 and 6 Decades Available
* Total Range : 11.111 MΩ
* 최소 가변저항 Steps ; 0.001Ω
* Special Waidner Wolff Decade Minimises Switch Contact Resistance
* Accuracy 0.05% for premium dials
* Resistance Coils Wound in Selected Low TC Wire
* Special Models for Pt100 Simulation
* Special Model for Insulation Simulation

대기압 Transmitter

* 측정범위 : 800 ~ 1600 hPa
* 정확도 : ±0.2 hPa (상온 20℃ ±5℃ 기준)
* 장기안정도 : ±0.1 hPa / year
* 작동온도 : -40 ~ 60℃
* Power : 10 ~ 30VDC
* Output : 0 ~ 5VDC
* Dimension : 100 x 60 x 22mm, 130g
* 제품사양에 따라 모델이 달라질 수 있음
* 5004 Series : 대기압센서 + Piezoresistive element 및 AMP 0 ~ 5V & 4 ~ 20mA output
* 5005 Series : 대기압센서 + display 및 0 ~ 5V & 4 ~ 20mA output

New! P612 최상급 Silicon Glass Fused PT

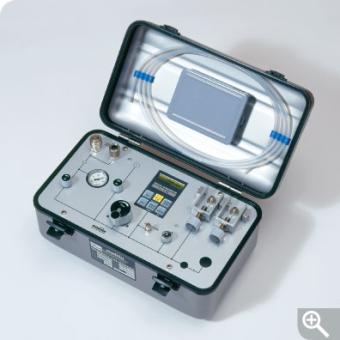

OM-HM 481 BO

Application:
• calibration of tyre pressure manometers
• the input pressure can be increased by automatically increasing the pressure of 1:3.5

Equipment: REVUE THOMMEN AG digital manometer HM 28

Full-scale reading: 17 bar

The portable OM 481.000 measurement case has been specially designed for calibrating tyre pressure manometers. The measurement case is equipped with a REVUE THOMMEN AG digital manometer of type series 28.

OM-HM 481 BO

Application:
• calibration of tyre pressure manometers
• the input pressure can be increased by automatically increasing the pressure of 1:3.5

Equipment: REVUE THOMMEN AG digital manometer HM 28

Full-scale reading: 17 bar

The portable OM 481.000 measurement case has been specially designed for calibrating tyre pressure manometers. The measurement case is equipped with a REVUE THOMMEN AG digital manometer of type series 28.

계단식 저항기 005/6/8 Series

* 정확도 : 0.01%
* PT100 저항발생에 적합
* Long Term Stability ± 20ppm/year
* Low Temperature Co-efficient ± 3ppm/°C to + 85 °C
* 금도금 스위치 접촉단자로 접촉저항에 의한 손실 최소
* Solid Copper Input Terminals
* Negligible Thermal e.m.f.s
* Light Weight / Small Size
* With Certificate of Conformity
* In-House Test Figures Optional

Global Radiation Sensor

* 실리콘 다이오드와 Diffusor, PMMA돔으로 구성
* Spectral range : 실리콘의 것과 동일
* 측정범위 : 0 ~ 1300Wm-2
* 작동온도 : -20 ~ 60℃
* Linearity : <1%
* Absolute error : <10%
* Power : 10 ~ 30V DC
* Output : 0 ~ 5V DC or 4 ~ 20mA
* Dimension : 42Ø x 70mm x 1.5m cable, 0.10 kg
* 제품사양에 따라 모델이 달라질 수 있음
* 6004 Series : 측정범위 0 ~ 2000Wm-2
* 6005 Series : Spectral 305 ~ 2800nm
* 6012 Series : Spectral 305 ~ 2800nm

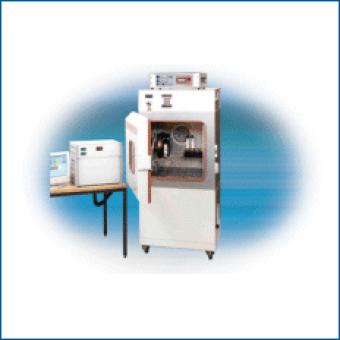

HG-10 항온항습 챔버 0.5%정확도

Product Features

Automatic System with Reference Hygrometer
Traceable to National Standards
Temperature and Humidity Profiling
Wide range of humidity generation 1 to 95% RH,
-50 to +50°C dew point
Accuracy ±0.5% RH displayed

New! 최상급 P611 Silicon Glass Fused PT

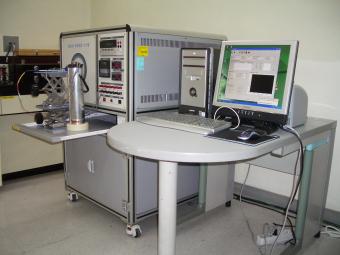

열전대 자동 교정 시스템

표준교정절차에 작성된 프로그램
국가표준(KRISS)에 완전 소급성 (Traceability Program)
ISO 가이드에 의한 불확도 산출가능 Program
편차함수를 이용한 교정성적서 작성 Program
ISO 17025에 의한 교정품질 보증 가능한 Program
차후 Upgrade 용이함
순금속 열전대 교정가능
교정결과 Database 구축가능

456 Fixed Resistor

온도보상표준저항
- 1mA에서 1ppm/year
- DC Resistance
0.1ohm to 1000ohm : ±5ppm
1k ohm to 100k ohm : ±12ppm
- AC Resistance
2.5ohm to 400ohm : ±12ppm (75Hz)

909 Working SPRT 광범위(-196 °c to 670 °c)에서 작동

표준백금저항온도계
- 광범위(-196 °c to 670 °c)에서 작동
- 3가지 길이 선택가능
- 표준 : 480mm
- 연장 : 550mm
- 최대 연장 가능 길이 : 600mm
