CS Series

*온도범위 : ~1350℃
*워런티기간 : 2년

60bar / 0.05%FS 공압교정기 PM60 P

* 발생압력범위 : -1(-950mbar)…60 bar
* Switchable pressure units bar, mbar, PSI, kPa, MPa
* Pressure connection over G¼’’ female with pressure hose
* PC connection via RS232 interface
* Power supply 4 x 1.5 V battery
* 압력게이지의 측정범위
-1 ~ 1bar / -1 ~ 2.5bar / -1 ~ 5bar / -1 ~ 10bar
-1 ~ 20bar / 0 ~ 50bar / 0 ~ 100 bar / 0 ~ 250bar
0 ~ 350bar / 0 ~ 500 bar / 0 ~ 700bar
0 ~ 1000bar / 0 ~ 1500bar / 0 ~ 2000bar
* 정확도
Modell A : +/-0.10 % FS
Modell B : +/-0.05 % FS
* 분해능 :
Model A : 0.001 ~ 1bar
Model B : 0.0001 ~ 0.5bar
* 다양한 압력게이지를 이용하여 넓은 압력범위와 정확도로 교정가능
* Add. case, flexible pressure hose and set of seals
* Set of adapter
G⅛’’, G¼“, G⅜’’, G½’
NPT⅛’’, NPT¼“, NPT½’’M12x1.5, M20x1.5
double fitting G⅛’’A and G¼“A
* Calibration & test software incl. data cable WINDOWS

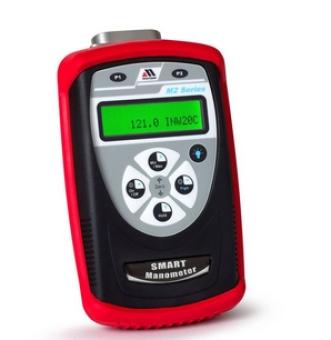

Meriam M200 Smart Manometer

Handheld, high-precision, digital manometer with an accuracy of up to ±0.025% of full scale

HumidCheck Pro 6 ~ 100 % / 정확도 ±1%

* 목재수분 측정기

350bar / 0.5%FS 유압교정기 PM350_D

Pressure medium distilled water or hydraulic oil
Measuring range 0…(300)350 bar
Pressure range of the hand pump 0…350 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units bar, mbar/hPa, PSI, kPa, MPa, kg/cm²
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
Power supply
3 V battery, 1400 h service life continuous operation
LOW-BAT-display, AUTO-OFF

Measuring range 0…(300)350 bar – Resolution 0.1 bar
Accuracy -0.1 % FS +/-1 digit
Add. case, flexible pressure hose and set of seals
Set of adapter G⅛’’, G⅜’’, G½’’, G¼“ female
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X

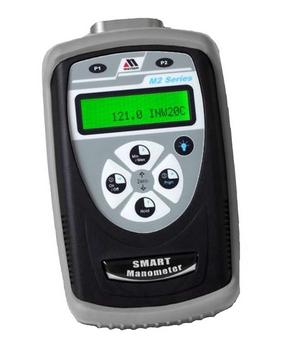

Meriam M200-LS Smart Manometer

Handheld, Lab Standard digital manometer with an NIST traceable accuracy of ±0.01% of full scale

HumidCheck 비접촉 0 ~ 100 digit

350bar / 0.5%FS 유압교정기 PM350_D

Pressure medium distilled water or hydraulic oil
Measuring range 0…(300)350 bar
Pressure range of the hand pump 0…350 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units bar, mbar/hPa, PSI, kPa, MPa, kg/cm²
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
Power supply
3 V battery, 1400 h service life continuous operation
LOW-BAT-display, AUTO-OFF

Measuring range 0…(300)350 bar – Resolution 0.1 bar
Accuracy -0.1 % FS +/-1 digit
Add. case, flexible pressure hose and set of seals
Set of adapter G⅛’’, G⅜’’, G½’’, G¼“ female
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X

자동 0 °C 실현장비 TP 17 Zero

LS2000 Series

HumidCheck Mini II 소형 목재 수분측정기 / 목재 6~48%

700bar / 0.6%FS 유압교정기 PM700 A

Pressure medium distilled water or hydraulic oil
Standard DIN measuring range
Pressure range of the hand pump 0...700 bar
Analogue test gauges D = 100 mm
Pressure units on customer request
Pressure connection over G¼’’ female with pressure hose (1.0 m)
DIN measuring range and resolution
Accuracy 0.6
Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
G⅛’’ and G¼“ male

Meriam M201 Enhanced Rotary Gas Meter Tester

High accuracy tester for rotary (natural) gas meters

물성 0 °C 실현장비

LS3000 Series
