40bar / 0.01%FS 공압 교정기 PM40_L

Pressure medium air
Measuring ranges -1…20 bar
Pressure range of the hand pump -1(-950mbar)…40 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units
bar, mbar, hPa, PSI, kPa, MPa, PSI, kp/cm², cmH2O, mH2O, inH2O, ftH2O, mmHg, inHg
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
PC connection via RS485 interface
Power supply
3 V battery, 2000 h service life continuous operation
LOW-BAT-display, AUTO-OFF


Measuring range -1…20 – Resolution 0.001 bar


Modell A (+/-0.025 % FS) (for one of the above mentioned pressure range)
Modell B (+/-0.01 % FS) (for one of the above mentioned pressure range)


Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G¼“, G⅜’’, G½’’
NPT⅛’’, NPT¼“, NPT½’’
M12x1.5, M20x1.5
double fitting G⅛’’A and G¼“A
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X
Calibration & test software incl. data cable WINDOWS

Digital Pressure Manometer PS309

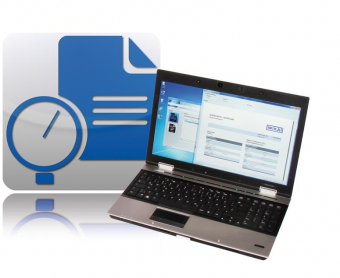

WIKA Cal 교정 소프트 웨어

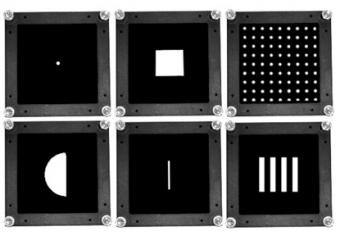

흑체로의 다양한 표적

700bar / 0.01%FS 유압교정기 PM700 L

Pressure medium distilled water or hydraulic oil
Measuring ranges 0…400 bar
Pressure range of the hand pump 0…700 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units
bar, mbar, hPa, PSI, kPa, MPa, PSI, kp/cm², cmH2O, mH2O, inH2O, ftH2O, mmHg, inHg
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
PC connection via RS485 interface
Power supply
3 V battery, 2000 h service life continuous operation
LOW-BAT-display, AUTO-OFF


Measuring range 0…400 – Resolution 0.05 bar

Modell A (+/-0.025 % FS) (for one of the above mentioned pressure range)
Modell B (+/-0.01 % FS) (for one of the above mentioned pressure range)


Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
G⅛’’ and G¼“ male
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X
Calibration & test software incl. data cable WINDOWS

오일내 수분함유량 측정센서 EE36 / 0 ~ 1 aw ±0.01aw 정확도

* 측정범위 : 0 ~ 1 aw, -40...180°C
* Outputs: 0-5V, 0-10V, 4-20mA, 0-20mA
* 정확도 : +/- 0,01aw; +/- 0,2°C
* Supply: 24V AC/DC

정밀 LCD디지털 압력지시계 ST

Miniature

1000bar / 0.01%FS 유압교정기 PM1000 L

* Pressure medium distilled water or hydraulic oil
* Modell A (+/-0.025 % FS)
* Modell B (+/-0.01 % FS)
* 압력측정범위 : 0…1000 bar
* 압력발생범위 : 0…1000 bar
* 압력지시 분해능 : 0.1bar
* 압력단위 : bar, mbar, hPa, PSI, kPa, MPa, PSI, kp/cm², cmH2O, mH2O, inH2O, ftH2O, mmHg, inHg
* Pressure connection over G¼’’ female with pressure hose (1.0 m)
* PC connection via RS485 interface
* Power supply 3 V battery,
* Add. case, flexible pressure hose and set of seals
* Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
G⅛’’ and G¼“ male
* Calibration & test software incl. data cable WINDOWS

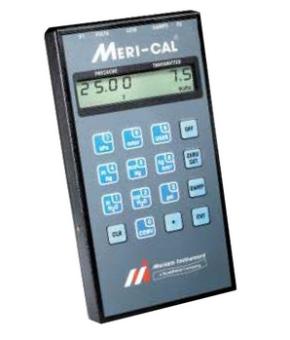

Meriam 35EE Meri-Cal Manometer / Calibrator

Portable digital manometer / calibrator for pressure and differential pressure measurement

오일의 수분함유량 측정센서 EE381 / 0 ~ 1 aw ±0.02aw 정확도

* 측정범위 : 0 ~ 1aw // -40...80°C (-40...176°F)
* Outputs : 0...1V / 0...5V / 0...10V / 4...20mA / 0...20mA
* Switch: 2 potential-free relays (normally open)
* 정확도 : ±0.02aw // ±0.2°C
* Supply: 10...30V DC

ES1000-100

*Controller 내장형
*가벼운 무게
*높은 안정성과 정확도
*2년 워런티

40bar / 0.6%FS 공압교정기 PM40_A

Pressure medium air
Standard DIN measuring range
Pressure range of the hand pump -1(-950 mbar)...40 bar
Analogue test gauges D = 100 mm
Pressure units on customer request
Pressure connection over G¼’’ female with pressure hose (1.0 m)
DIN measuring rang and resolution
Accuracy 0.6
Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G¼“, G⅜’’, G½’’
NPT⅛’’, NPT¼“, NPT½’’
M12x1.5, M20x1.5
double fitting G⅛’’A and G¼“A

Meriam M100 Digital Manometer

Handheld digital manometer with ±0.25 % accuracy

HumidCheck 바그래프 목재수분측정기 / 목재 6~44% ±1%
