1000bar / 0.1%FS 유압교정기 PM1000 D

Pressure medium distilled water or hydraulic oil
Measuring range 0…1000 bar
Pressure range of the hand pump 0…100 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units bar, mbar/hPa, PSI, kPa, MPa, kg/cm²
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
Power supply
3 V battery, 1400 h service life continuous operation
LOW-BAT-display, AUTO-OFF


Measuring range 0…1000 bar – Resolution 0.2 bar
Accuracy -0.1 % FS +/-1 digit


Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
G⅛’’ and G¼“ male
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X

40bar / 0.05%FS 공압교정기 PM40_P

Pressure medium air
Pressure range of the hand pump -1(-950mbar)…40 bar
Display multi-purpose LCD, 20 x 60 mm
Switchable pressure units bar, mbar, PSI, kPa, MPa
Transparency keyboard with six keys
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65 (front) otherwise IP40
PC connection via RS232 interface
Power supply
4 x 1.5 V battery, 8000 h service life continuous operation
LOW-BAT-display, AUTO-OFF

Measuring range Resolution
Range Model A Model B
-1...1 bar 0.001 bar 0.0001 bar
-1...2.5 bar 0.001 bar 0.0005 bar
-1...5 bar 0.001 bar 0.0005 bar
-1...10 bar 0.01 bar 0.001 bar
-1...20 bar 0.01 bar 0.002 bar

Modell A (+/-0.10 % FS) (for one of the above mentioned pressure range)
Modell B (+/-0.05 % FS) (for one of the above mentioned pressure range)


Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G¼“, G⅜’’, G½’’
NPT⅛’’, NPT¼“, NPT½’’
M12x1.5, M20x1.5
double fitting G⅛’’A and G¼“A
Calibration & test software incl. data cable WINDOWS

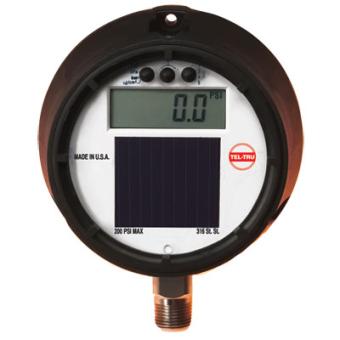

Solar powered DG1A

700bar / 0.05%FS 유압교정기 PM700 P

Pressure medium distilled water or hydraulic oil
Measuring range 0…700 bar
Pressure range of the hand pump 0…700 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units bar, mbar/hPa, PSI, kPa, MPa, kg/cm²
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
Power supply
3 V battery, 1400 h service life continuous operation
LOW-BAT-display, AUTO-OFF


Measuring range 0…700 bar – Resolution 0.2 bar
Accuracy -0.1 % FS +/-1 digit


Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
G⅛’’ and G¼“ male
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X

1000bar / 0.05%FS 유압교정기 PM1000 P

Pressure medium distilled water or hydraulic oil
Measuring ranges 0…1000 bar
Pressure range of the hand pump 0…1000 bar
Display multi-purpose LCD, 20 x 60 mm
Switchable pressure units bar, mbar, PSI, kPa, MPa
Transparency keyboard with six keys
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65 (front) otherwise IP40
PC connection via RS232 interface
Power supply
4 x 1.5 V battery, 8000 h service life continuous operation
LOW-BAT-display, AUTO-OFF


Measuring range 0…1000 bar
Modell A 1 bar – Modell B 0.1 bar


Modell A (+/-0.10 % FS) (for one of the above mentioned pressure range)
Modell B (+/-0.05 % FS) (for one of the above mentioned pressure range)


Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
G⅛’’ and G¼“ male
Calibration & test software incl. data cable WINDOWS

디지털압력계 Series 2400

40bar / 0.5%FS 공압교정기 PM40_E

Pressure medium air
Measuring range -1…(30)40 bar
Pressure range of the hand pump -1(-950 mbar)...40 bar
Display multi-purpose LCD, 30 x 30 mm
Function keys ‘SELECT’ (reset, off, zero, cont) ‘MIN/MAX’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
Power supply
3 V battery, 1400 h service life continuous operation
LOW-BAT-display, AUTO-OFF
Measuring rang -1…(30)40 bar – Resolution 0.01 bar
Accuracy +/-0.5 % FS +/-1 digit
Add. case, flexible pressure hose and set of seals
Set of adapter
G[’’, G¼“, G’’, G½’’
NPT[’’, NPT¼“, NPT½’’
M12x1.5, M20x1.5
double fitting G[’’A and G¼“A
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X

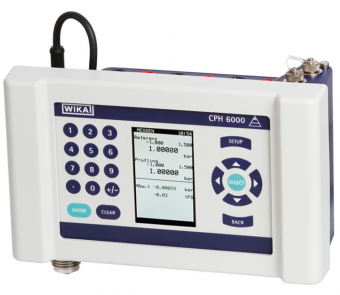

CPH6000 압력 교정기 / 0~250mbar, 0~8000bar

350bar / 0.5%FS 유압교정기 PM350_E

Pressure medium distilled water or hydraulic oil
Measuring range 0…(300)350 bar
Pressure range of the hand pump 0…350 bar
Display multi-purpose LCD, 30 x 30 mm
Function keys ‘SELECT’ (reset, off, zero, cont) ‘MIN/MAX’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
Power supply
3 V battery, 1400 h service life continuous operation
LOW-BAT-display, AUTO-OFF



Measuring range 0…(300)350 bar – Resolution 0.1 bar

Accuracy +/-0.5 % FS +/-1 digit




Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X

디지털압력계 CPG8000

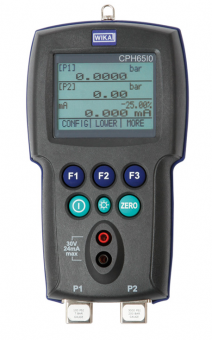

CPH6510 휴대용 압력 교정기 / 0~25mbar, 0~700bar

Jaggy펌프 일체형 교정기

* Jaggy 압력펌프 일체형
* Pressure Connection G1/4”, female with hose
* Display : Multifunction LCD display, 20 x 60mm
* 정확도 : ±0.025% FS ±1digit
* 압력범위 : 0 ~ 60bar, 200bar, 350bar & 700bar
* 분해능 : 0.005 ~ 0.07bar

정밀 LCD 디지털압력계 PT

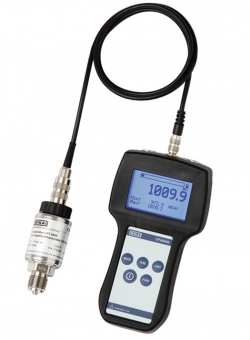

CPH6400 휴대용 압력 인디케이터 / 0~250mbar, 0~6000bar

진공흑체로 100K~425K
