TP38165 EXT 모듈 내장형 / -35 ~ 165℃

* 온도범위 : -35 °C ~ 450 °C
* 분해능 : 0.01 °C
* 안정도 : 0.01℃ ~ 0.05℃

TP38650 EXT 모듈 내장형 / 35 ~ 650℃

* 다기능 고안정도 온도블록교정기
* 사용온도범위 : 상온(35°C) to +650 °C
* 온도조절계 허용오차 : ±0.1 °C
* 온도 안정도 : 0.01 °C to 0.05 °C
* 온도 분해능 : 0.01
* 데이터 저장기능 : 8 data sets with 6 values each
* 외부센서 측정기능 :
- RTD, TC, mA, switch, calibration referencesensors

TP17165S 0.05℃안정도 / -35 ~ 165℃

* 고안정도 온도블록교정기
* 사용가능범위 : -35 °C up to +165 °C
* 블록온도조절방식 : Digital PID-controller, automatic fine adjustment with softstart for fan
* 온도조절계 허용오차 : ±0.2 °C
* 안정도 : ±0.05 °C
* 온도지시부 : 4-digit, 2-line, 7-segment-LED, 7 mm high, red and green
* 온도조절계 지시범위 : -50.0 °C up to +165.0 °C

TP17450S 0.05℃안정도 / 35 ~ 450℃

* 고안정도 온도블록교정기
* 사용가능범위 : 상온(35°C) up to +450 °C
* 블록온도조절방식 : Digital PID-controller, automatic fine adjustment with softstart for fan
* 온도조절계 허용오차 : ±0.2 °C
* 안정도 : ±0.05 °C
* 온도지시부 : 4-digit, 2-line, 7-segment-LED, 7 mm high, red and green
* 온도조절계 지시범위 : 0.0 °C up to +450.0 °C

TP17650S 0.05℃안정도 / 35 ~ 650℃

* 고안정도 온도블록교정기
* 사용가능범위 : 상온(35°C) up to +650 °C
* 블록온도조절방식 : Digital PID-controller, automatic fine adjustment with softstart for fan
* 온도조절계 허용오차 : ±0.2 °C
* 안정도 : ±0.05 °C
* 온도지시부 : 4-digit, 2-line, 7-segment-LED, 7 mm high, red and green
* 온도조절계 지시범위 : -50 °C up to +165 °C

Tecal 1200S 고온용 150 ~ 1200'C / 0.2℃ 안정도

emperature range 150°C to 1200°C
Display Accuracy ±3°C
Temperature Uniformity ±0.2°C
Temperature Stability ±0.2°C ( at 1200°C after 20 mins)
Safety over-temperature cut-out Yes
Display resolution 0.1°C to 999.9 then 1°C to 1200°C
Display units Selectable °C or °F
PC Interface RS–232
Heating rate 100 to 1200°C 20 minutes
Cooling rate 1200 to 200°C 140 minutes
Large lnsert block Ø34mm x 155 mm with 4 off bores Ø8mm x 80 mm deep
Fan Cooling Automatic
Fast Cooling Rapid Air Cooling Probe - Option
Dimensions L x W x H (mm) 350 x 200 x 300
Weight

* 특징
고온용 드라이블럭 좋은상품 입니다.

Tecal 140F 0.05'C안정도 / -25 ~ 140'C

* Temperature range 45°C below ambient to 140°C (typically -20°C in an ambient of 25°C)
* Display Accuracy ±0.3°C
*Temperature Uniformity ±0.2°C
* Temperature Stability ±0.05°C ( after 10 mins)
* Display resolution 0.01°C or 0.1 °F
* Display units Selectable °C or °F
* PC Interface RS-232 option
* Heating rate 20°C to 100°C 5 minutes
* Cooling rate 100°C to 0°C 9 minutes
* Large well Ø38mm x 135mm deep lnserts
* Fan Cooling Automatic
* Dimensions L x W x H (mm) 273 x 207 x 289
* Weight 11 kg

Tecal 425F 0.03'C안정도 / 35~425'C

* Temperature range 5°C above ambient to 425°C
* Display Accuracy ±0.3°C
* Temperature Uniformity ±0.2°C
* Temperature Stability ±0.03°C at 200°C (after 10 mins)
* Temperature Stability ±0.05°C at 425°C (after 10 mins)
* Display resolution 0.01°C or 0.1 °F
* Set point resolution 0.1°C or 0.1 °F
* Display units Selectable °C or °F
* PC Interface RS-232 option
* Heating rate 20°C to 400°C 12 minutes
* Cooling rate 400°C to 100°C 21 minutes
* Large well Ø38mm x 135 mm deep lnserts
* Fan Cooling Automatic
* Safety over-temperature cut-out Yes
* Fast Cooling Rapid Water Cooling Probe - Compatible Option
* Dimensions L x W x H (mm) 270 x 170 x 255
* Weight 6.3kg

Tecal 650F 0.09'C안정도 / 35~650'C

* Temperature range 25°C above ambient to 650°C
* Display Accuracy ±0.4°C
* Temperature Uniformity ±1°C
* Temperature Stability ±0.09°C (after 10 mins)
* Display resolution 0.01°C or 0.1 °F
* Set point resolution 0.1°C or 0.1 °F
* PC Interface RS-232 option
* Heating rate 20°C to 600°C 24 minutes
* Cooling rate 600°C to 200°C 21 minutes
* Large well Ø38mm x 152 mm deep lnserts
* Fan Cooling Automatic
* Safety over-temperature cut-out Yes
* Fast Cooling Rapid Water Cooling Probe - Compatible option
* Dimensions L x W x H (mm) 278 x 170 x 300
* Weight 9.6kg

TP28850 35~850'C / 0.05'C 안정도

* 사용가능범위 : 상온(35°C ) ~ 850 °C
* 조절계 허용오차 : ±0.5 °C
* 온도안정도 : ±0.05 °C
* Display : LED, 4 1/2 digit, 14 mm high
* Resolution : 0.1

TP281300 450~1300℃ 고온용 / 0.05'C 안정도

* 사용가능범위 : 400 °C to 1300 °C
* 조절계 허용오차 : ±2 °C
* 온도안정도 : ±0.5 °C
* Display : LED, 4 1/2 digit, 14 mm high
* Resolution : 0.5

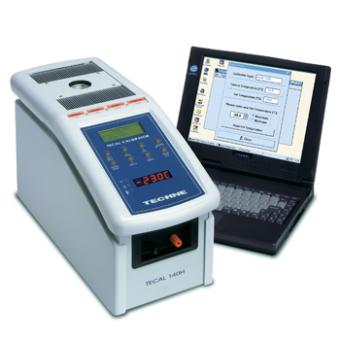

Tecal 140S -40 ~ 140°C / 0.05°C 안정도

Temperature range 45°C below ambient to 140°C (typically -20°C in an ambient of 25°C)
Temperature range with CH-5 unit -40°C to 140°C (using Chilled water supply through heatsinks)
Display Accuracy ±0.3°C
Temperature Uniformity ±0.2°C
Measuring zone 0 to 50mm from base of well
Temperature Stability ±0.05°C ( after 10 mins)
Display resolution 0.1°C or 0.1 °F
Display units Selectable °C or °F
PC Interface RS-232
Heating rate 20°C to 100°C 5 minutes
Cooling rate 100°C to 0°C 9 minutes
Ramp Rate °C per min 0.1 to 10 on H version
Switch test on H model
Large well Ø38mm x 135 mm deep lnserts
Fan Cooling Automatic
Additional Cooling Water Cooling channels on S and H models
Carry case Soft carry case included
Dimensions L x W x H (mm) 285 x 190 x 426
Weight 14kg (S) 14.4kg (H)

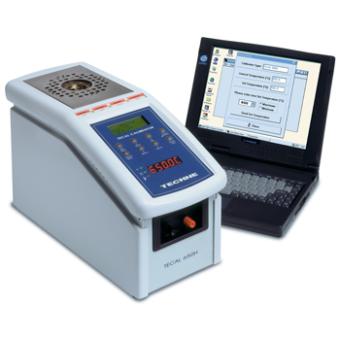

Tecal 650S&H 45 ~ 650°C / 0.09°C 안정도

emperature range 25°C above ambient to 650°C
Display Accuracy ±0.4°C
Temperature Uniformity ±1°C
Measuring zone 0 to 50mm from base of well
Temperature Stability ±0.09°C ( after 10 mins)
Display resolution 0.1°C or 0.1 °F
Display units Selectable °C or °F
PC Interface RS-232
Heating rate 20°C to 400°C 35 minutes
Cooling rate 400°C to 100°C 30 minutes
Ramp Rate °C per min 0.1 to 10 on H version
Switch test on H model
Large well Ø38mm x 152 mm deep lnserts
Fan Cooling Automatic
Fast Cooling Rapid Water Cooling Probe - Compatible Option
Carry case Soft carry case included
Dimensions L x W x H (mm) 285 x 190 x 426
Weight 11.8kg (S) 12.2kg (H)

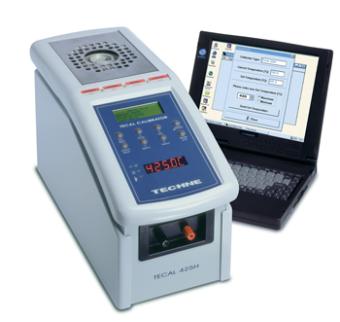

Tecal 425S&H 40 ~ 425°C / 0.05°C 안정도

* Temperature range 20°C above ambient to 425°C
* Display Accuracy ±0.3°C
* Temperature Uniformity ±0.2°C
* Measuring zone 0 to 50mm from base of well
* Temperature Stability ±0.05°C ( after 10 mins)
* Display resolution 0.1°C or 0.1 °F
* Display units Selectable °C or °F
* PC Interface RS-232
* Heating rate 20°C to 400°C 15 minutes
* Cooling rate 400°C to 100°C 25 minutes
* Ramp Rate °C per min 0.1 to 10 on H version
* Switch test on H model
* Large well Ø38mm x 135 mm deep lnserts
* Fan Cooling Automatic
* Fast Cooling Rapid Water Cooling Probe - Compatible Option
* Carry case Soft carry case included
* Dimensions L x W x H (mm) 285 x 190 x 426
* Weight 9.2kg (S) 9.6kg (H)

Tecal 700X 45 ~ 700°C / 0.005°C 안정도

Temperature range Ambient +25°C to 700°C
Display Accuracy ±0.25°C at 700°C
Display Accuracy ±0.15°C up to 660°C
Temperature Uniformity ±0.04°C radial and ±0.4°C axial
Temperature Stability ±0.03°C ( at 700°C) and ±0.005°C ( at 100°C)
Display resolution 0.01°C across range ( 0.01 °F to 999.9°F then 0.1 to 1292°F)
Display units Selectable °C or °F
Switch test Ramp rate (°C or °F per min) Selectable 0.1 to 10.0°C or 0.1 to 18.0 °F
PC Interface USB
Heating rate ambient to 700°C 25 minutes
Cooling rate 700 to 100°C 30 minutes
Large block with bores and slim lnsert (Metric) Ø63mm with 6 off bores Ø15 10 8 6 4.5 3mm x 150 mm deep
Large block with bores and slim lnsert (Imperial) Ø63mm with 6 off bores Ø5/8” 3/8” 5/16” 1/4” 3/16” 1/8” x 150 mm deep
Fan Cooling Automatic
Safety over-temperature cut-out Yes
Fast Cooling Rapid Water Cooling Probe - Compatible Option
Dimensions L x W x H (mm) 285 x 190 x 426
Weight 10.0kg
