Tecal 425F 5°C ~ 425°C / ±0.03°C 안정도

* 온도 범위 : 5°C above ambient to 425°C
* 안정도 : ±0.03°C at 200°C (after 10 mins)
±0.05°C at 425°C (after 10 mins)

ADVANCED Jupiter 35 to 650℃

중온용온도교정기
- 35 to 650℃
- 빠르고 넓은 작동 범위
- PC 기반 소프트 웨어

857 GEMINI 550&700 35 to 700℃

중온용온도교정기
- 온도범위 : 35 to 700℃
- 교정공간 : 64 × 160mm
- 모델 선택 : 35 ~ 550, 50 ~ 700℃
- 산입블록 : Standard, 고객 맞춤형
- UKAS 교정 선택 옵션

951 VENUS 2140 -35 to 140℃

다기능온도교정기
- 온도범위 -35 to 140℃)
- 베스트 셀러
- 일체형 모델
- PC 소프트웨어 기본 제공

852 JUPITER 650 35 to 650℃

중온용 온도교정기
- 35 to 650℃
- 빠르고 넓은 작동 범위
- PC 기반 소프트 웨어

Tecal 650F 25°C ~ 650°C / ±0.09°C 안정도

* 온도범위 : 25°C above ambient to 650°C

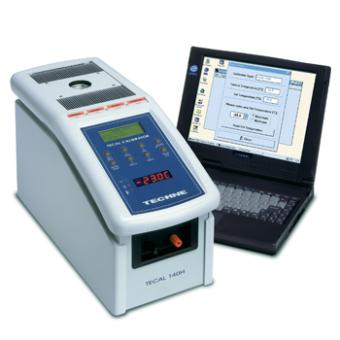

Tecal 140S -40 ~ 140°C / 0.05°C 안정도

Temperature range 45°C below ambient to 140°C (typically -20°C in an ambient of 25°C)
Temperature range with CH-5 unit -40°C to 140°C (using Chilled water supply through heatsinks)
Display Accuracy ±0.3°C
Temperature Uniformity ±0.2°C
Measuring zone 0 to 50mm from base of well
Temperature Stability ±0.05°C ( after 10 mins)
Display resolution 0.1°C or 0.1 °F
Display units Selectable °C or °F
PC Interface RS-232
Heating rate 20°C to 100°C 5 minutes
Cooling rate 100°C to 0°C 9 minutes
Ramp Rate °C per min 0.1 to 10 on H version
Switch test on H model
Large well Ø38mm x 135 mm deep lnserts
Fan Cooling Automatic
Additional Cooling Water Cooling channels on S and H models
Carry case Soft carry case included
Dimensions L x W x H (mm) 285 x 190 x 426
Weight 14kg (S) 14.4kg (H)

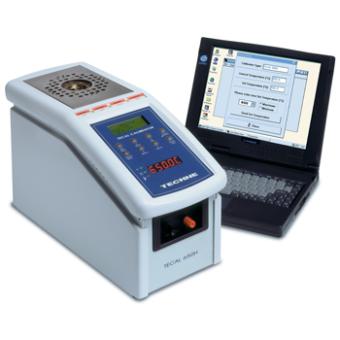

Tecal 650S&H 45 ~ 650°C / 0.09°C 안정도

emperature range 25°C above ambient to 650°C
Display Accuracy ±0.4°C
Temperature Uniformity ±1°C
Measuring zone 0 to 50mm from base of well
Temperature Stability ±0.09°C ( after 10 mins)
Display resolution 0.1°C or 0.1 °F
Display units Selectable °C or °F
PC Interface RS-232
Heating rate 20°C to 400°C 35 minutes
Cooling rate 400°C to 100°C 30 minutes
Ramp Rate °C per min 0.1 to 10 on H version
Switch test on H model
Large well Ø38mm x 152 mm deep lnserts
Fan Cooling Automatic
Fast Cooling Rapid Water Cooling Probe - Compatible Option
Carry case Soft carry case included
Dimensions L x W x H (mm) 285 x 190 x 426
Weight 11.8kg (S) 12.2kg (H)

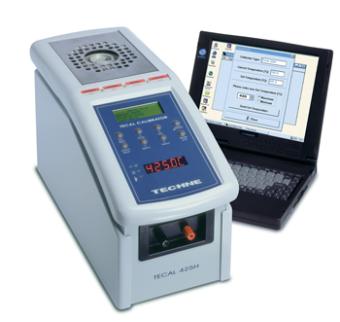

Tecal 425S&H 40 ~ 425°C / 0.05°C 안정도

* Temperature range 20°C above ambient to 425°C
* Display Accuracy ±0.3°C
* Temperature Uniformity ±0.2°C
* Measuring zone 0 to 50mm from base of well
* Temperature Stability ±0.05°C ( after 10 mins)
* Display resolution 0.1°C or 0.1 °F
* Display units Selectable °C or °F
* PC Interface RS-232
* Heating rate 20°C to 400°C 15 minutes
* Cooling rate 400°C to 100°C 25 minutes
* Ramp Rate °C per min 0.1 to 10 on H version
* Switch test on H model
* Large well Ø38mm x 135 mm deep lnserts
* Fan Cooling Automatic
* Fast Cooling Rapid Water Cooling Probe - Compatible Option
* Carry case Soft carry case included
* Dimensions L x W x H (mm) 285 x 190 x 426
* Weight 9.2kg (S) 9.6kg (H)

Tecal 700X 45 ~ 700°C / 0.005°C 안정도

Temperature range Ambient +25°C to 700°C
Display Accuracy ±0.25°C at 700°C
Display Accuracy ±0.15°C up to 660°C
Temperature Uniformity ±0.04°C radial and ±0.4°C axial
Temperature Stability ±0.03°C ( at 700°C) and ±0.005°C ( at 100°C)
Display resolution 0.01°C across range ( 0.01 °F to 999.9°F then 0.1 to 1292°F)
Display units Selectable °C or °F
Switch test Ramp rate (°C or °F per min) Selectable 0.1 to 10.0°C or 0.1 to 18.0 °F
PC Interface USB
Heating rate ambient to 700°C 25 minutes
Cooling rate 700 to 100°C 30 minutes
Large block with bores and slim lnsert (Metric) Ø63mm with 6 off bores Ø15 10 8 6 4.5 3mm x 150 mm deep
Large block with bores and slim lnsert (Imperial) Ø63mm with 6 off bores Ø5/8” 3/8” 5/16” 1/4” 3/16” 1/8” x 150 mm deep
Fan Cooling Automatic
Safety over-temperature cut-out Yes
Fast Cooling Rapid Water Cooling Probe - Compatible Option
Dimensions L x W x H (mm) 285 x 190 x 426
Weight 10.0kg

TP38165E -35 ~ 165 °C / 0.01 ~ 0.05℃안정도

* 사용온도범위 : -35 °C to +165 °C
* 온도조절계 허용오차 : ±0.1 °C
* 온도 안정도 : 0.01 °C to 0.05 °C
* 온도 분해능 : 0.01

TP38650E 35 ~ 650℃ / 0.01~0.05℃안정도

* 사용온도범위 : 상온(35°C) to +650 °C
* 온도조절계 허용오차 : ±0.1 °C
* 온도 안정도 : 0.01 °C to 0.05 °C
* 온도 분해능 : 0.01

TP17165 -30 ~ 165℃ / 0.1℃안정도

* 사용가능범위 :-30 °C up to +165 °C
* 온도 조절방식 :Digital PID-controller, automatic fine adjustment with softstart for fan
* 조절계 허용오차 :±1 °C
* 온도 안정도 : ±0.1 °C
* 온도조절계 지시 : 4-digit, 2-line, 7-segment-LED, 7 mm high, red and green
* 지시가능 온도 : -50.0 °C up to +165.0 °C

TP17450 35 ~ 450℃ / 0.1℃ 안정도

* 사용가능범위 : 상온(30°C) up to +450 °C
* 온도 조절방식 :Digital PID-controller, automatic fine adjustment with softstart for fan
* 조절계 허용오차 :±1 °C
* 온도 안정도 : ±0.1 °C
* 온도조절계 지시 : 4-digit, 2-line, 7-segment-LED, 7 mm high, red and green
* 지시가능 온도 : 0.0 °C up to +450.0°C

TP281300 450~1300℃ 고온용 / 0.05'C 안정도

* 사용가능범위 : 400 °C to 1300 °C
* 조절계 허용오차 : ±2 °C
* 온도안정도 : ±0.5 °C
* Display : LED, 4 1/2 digit, 14 mm high
* Resolution : 0.5
