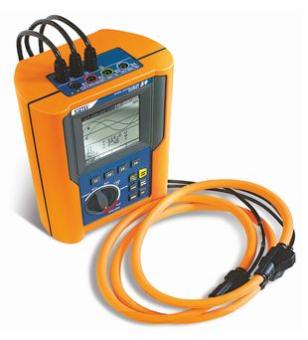

SIRIUS89N

SIRIUS89N is a complete model to perform all tests according to VDE 0413, it measures the environmental parameters and analyses the network power quality of single phase and three phases balanced systems. RCDs which suddenly trip out, transformers which overheat, motors which burn out, voltage sags and surges which create problems, all these problems could be easily solved with SIRIUS89N. This instrument integrates the possibility to perform the loop impedance measurement at high resolution (0.1mOhm) with the use of IMP57 (optional accessory) and some predefined recording settings to help the user on the most common recordings of the network parameters. SIRIUS89N can perform current measurements up to 3000A AC also by using a flexible clamp. This is a very important feature which permits to perform measurements on big cables or bars also. Thanks to the PC interface and the powerful software you will create accurate documents qualifying your professionalism more and more

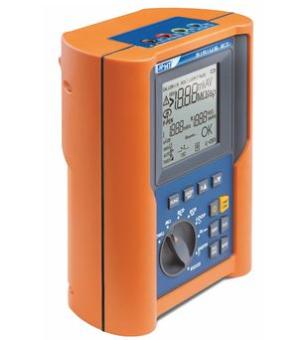

SIRIUS87

SIRIUS87 is a model to performing all safety tests according to VDE 0413 on electrical installations. Inside model are integrated new fundamental features: the possibility to perform Loop Impedance (P-P, P-N, P-PE) at high resolution (0.1mOhm) with use of IMP57 optional accessory. Thanks to its PC interface and powerful software you will create accurate documents qualifying your profession more and more

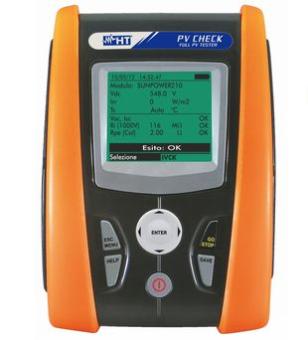

PVCHECK

The multifunction instrument PVCHECK allows prompt and safe electrical checks required for a PV system (section DC) and controls the functionality of modules / strings in accordance with IEC/EN62446 guideline. PVCHECK verifies the continuity of the protective conductors (and the associated connections) and executes the measurement of the insulation resistance of the active conductors on a module, a string or photovoltaic field in accordance with the requirements of IEC/EN62446, without the need to use an external switch to put in short-circuit the positive and negative terminals. PVCHECK allows verification of the functionality of a PV string in accordance with the requirements of IEC/EN62446 by measuring the open circuit voltage and short-circuit current at operating conditions and reporting the results to STC (by measurement of radiation). Finally it provides an immediate outcome concerning the measurements carried out in absolute terms and by comparison with the previously PV strings tested.
PVCHECK also allows carrying out performance analysis of PV array (DC) when it is under operating conditions (connected to the inverter) providing an indication of the power generated and the efficiency of the field as specified by IEC/EN62446

MAXTEST2038

MAXTEST HT2038 is a highly professional portable multifunction meter designed for safety test on each kind of electrical installations, in compliance to VDE0413. It is distinguished by a large choice of measuring functions. It contains approx. 1000 memory locations for storage of test results that can later be transferred to PC via RS-232 and analyzed with dedicated Windows software. MAXTEST HT2038 can performs Loop/Line impedance measurement with high resolution (0.1mOhm) with high 280A test current which permits a great accuracy results on short circuit current measures also closest to power transformers where the inductive effect are most important. The meter performs also continuity measures with test current of 10A ideal for medical rooms and test on electrical machines or switchboards systems

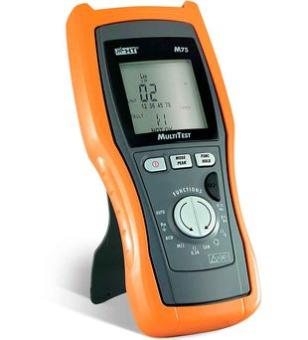

M75

M75 is an innovative instrument which joins together DMM, Safety Tester and LAN checker features inside a compact and ergonomic user-friendly structure and with a extremely reduced weight (800g only!). The DMM is a professional instrument with TRMS measurement of AC/DC voltage, AC Current (through external clamp), Resistance and Frequency. Additional features are MAX/MIN/AVG function, HOLD function and PEAK detection with Response Time of 1ms, useful for surge currents detection.

The Safety Tester features allow to perform test on electrical plants according to VDE0413. Measures of Continuity, Insulation, Global Earth value (also with 0.1 resolution), RCDs test, phase sequence indication and phase coincidence (using only one Test Lead even just touching even insulated cables or two Test Leads) will be easily performed thanks to this new extremely compact instrument. An innovative function (AUTOTEST) automatically performs main safety checks in the plant (Earth Resistance measurement, RCD Test, Insulation Test) just connecting the instrument to a socket and pressing the GO button. The instrument will give you a final response (OK or NOT OK) about the safety of the plant under test.

Finally the LAN checker function allows you to check if the wire mapping in a LAN cable is correct or not with easy indications about the found errors, which will guide you though the troubleshooting. M75 is completed by a modern selector function knob, a large numeric display for easy readings of measurements and a protection rubber holder to prevent accidental damaged

M74

M74 is one of four models of new MULTITEST family of portable meters, which included also M72, M73 and M75 meters, designed to perform Global Earth Resistance measurements, trip out time test on AC RCD type, Insulation and Continuity of earth conductors according to VDE and IEC common standards on typical urban electrical installations. Powerful AUTOTEST feature permits to M74 to quickly perform an automatic sequence of the above tests directly to the plugs of electrical plants with OK or NOT OK response results. M74 meter also include others features as phase sequence with 1 wire method, leakage current with optional transducer clamp and a powerful DMM function for TRMS measures of voltage and current ideal for troubleshooting operations both in civil and industrial environments. Voltage and current peak measure on 1ms it’s also ok for inrush current evaluation of electrical motor devices. As each model of MULTITEST family also M74 have a large LCD display for easy readings, a modern and ergonomic external case, a innovative electronic function selector for easy to use and a protection rubber holder to prevent accidental damaged

M73

M73 is one of four models of new MULTITEST family of portable meters, which included also M72, M74 and M75 meters, designed to perform Global Earth Resistance measurements and trip out time test on AC RCD type according to VDE and IEC common standards on typical urban electrical installations. M73 meter also include others features as phase sequence with 1 wire method, leakage current with optional transducer clamp and a powerful DMM function for TRMS measures of voltage and current ideal for troubleshooting operations both in civil and industrial environments. Voltage and current peak measure on 1ms it’s also ok for inrush current evaluation of electrical motor devices. As each model of MULTITEST family also M73 have a large LCD display for easy readings, a modern and ergonomic external case, a innovative electronic function selector for easy to use and a protection rubber holder to prevent accidental damaged.

M72

M72 is one of four models of new MULTITEST family of portable meters, which included also M73, M74 and M75 meters, designed to perform Insulation Resistance and Continuity of earth conductors measurements according to VDE and IEC common standards on typical urban electrical installations. M72 meter also include others features as phase sequence with 1 wire method, leakage current with optional transducer clamp and a powerful DMM function for TRMS measures of voltage and current ideal for troubleshooting operations both in civil and industrial environments. Voltage and current peak measure on 1ms it’s also ok for inrush current evaluation of electrical motor devices. As each model of MULTITEST family also M72 have a large LCD display for easy readings, a modern and ergonomic external case, a innovative electronic function selector for easy to use and a protection rubber holder to prevent accidental damaged

M71

The M71 meter is a innovative model designed to performing Earth Resistance measurements with 2-wire and 3-wire standards method with a wide measurement range (up to 50kOhm) and typically used in industrial electrical installations environments which consists of single probes and more or less wide earth networks. The 2-wire measurement method (where auxiliary metal parts are available) is extremely important in civil environments where 3-wire method application is not possible for logistical reasons. Each measure if performed with a test current at high frequency in order to consider and eliminate noise voltages disturb which can be present on installation. Thanks to a completely smaller and portable ergonomic case this meter it’s ideal for any kind of electrical installer

M70

ISOTEST M70 model is a innovative hand held meter designed to perform insulation resistance measurements with test voltage up to 1000VDC and continuity test measurements of earth conductors with 200mA test current, in compliance to VDE 0100 requirements, on civil and industrial electrical environments. This meter can be useful also for test on electrical equipments and switchboards according to IEC/EN60204-1 and IEC/EN60439-1 standards. Thanks to LOCK feature, the insulation measurement can be performed in continuous mode on device under test. A programmable timer from 2s to 60s permits also duration measurements.Other features of meter are the DC/AC voltage measurement up to 600V, resistance and continuity test with buzzer as a common DMM. A very large and backlight custom display permits easy readings also in dark environments. Small sizes, ergonomic shape and a reduced weight (just 450g!) are ok conditions for any electrical installer.

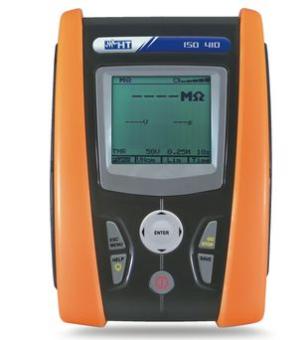

ISO410

ISO410 is an innovative meter designed to perform Insulation measurement up to 1000VDC and Continuity of earth conductor with 200mA on electrical installations in compliance to recently standards (VDE0100, BS7671 etc..). The meter it's very easy to use and thanks to newest electronic function selector it have an extreme rugged structure for perfect using on field".The instrument permits, moreover, to start principal measures by using a special remote prove (PR400 optional accessory) particular useful to perform tests in very quickly mode. A contextual help menu selectable by user it's available for each measurement function and permits a valid information during connection of meter to the installation.. A wide internal memory permits the saving of any measurements and the transfer to PC by serial port with dedicated software it's possible. Each measure it's saved with all the sub-results and test parameters with up to two ID locators (selectable by user on meter) in order to reach the exact point where the measure was performed

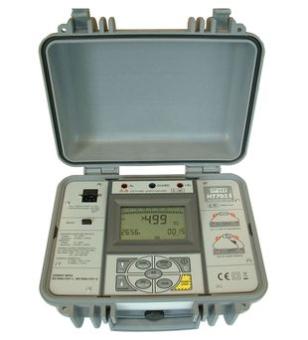

HT7052

HT7052 is a portable battery/mains powered test instrument intended for the testing of insulation resistance by using high test voltages of up to 10kV. It is a professional high voltage insulation tester with added diagnostics tools such as Polarization Index (PI), Dielectric Absorption Ratio (DAR) and Dielectric Discharge (DD). HT7052 is specially well suited for: power transformers, measuring transducers in distribution networks, testing insulation resistance of rotating machinery and cables, production line periodic testing and maintenance, troubleshooting and analysis of all kinds of insulation problems, etc. Because of its robustness (CAT IV protection), it is best suited for industrial environment. A dot matrix LCD offers easy-to-read results and all associated parameters. The operation is straightforward and clear to enable the user to operate the instrument without the need for special training. Test results can be stored on the instrument and transferred to the PC for further analysis

HT7051

HT7051 model was designed to perform professional insulation resistance measurements with test voltage programmable up to 5kVDC and wide measurement range up to 10Tohm which permits a large applications for each industrial LV environment (test on electrical machines, power transformers, electrical cables, switchboard panels, generic devices, etc…). Three different function modes are available on meter: FIX mode (fixed test voltage), ADJUST mode (programmable test voltage) and RAMP mode (programmable test voltage and duration time with up to 3 kind of selectable ramps) which permits to reach correct results in each situation. The Polarization Index (P.I) and Dielectric Absorption Ratio (D.A.R) available features are duration tests which permits to define a good behaviour of the global insulation. HT7051 meter is powered by a NiMH rechargeable battery with integrated adapter which permits to reach great performances during the measurements, it have a internal memory for saving results and a RS-232 interface for connection to PC and transfer saved measurements. All structure is fitted in a portable hard carrying case which assure safety typical of a “on field” meter

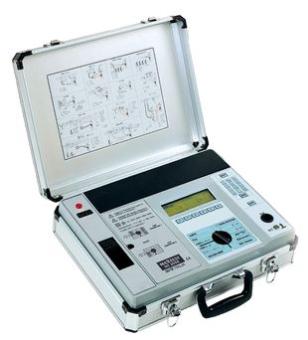

HT2055

HT2055 is composed of a station and a meter designed to perform step/contact voltage measurements on electrical installations such as HV power stations (TN systems, electrical substations) with rated test current up to 50A according to international guidelines. Both units, initially synchronized in time and current, can perform an exact calculation of step and contact voltage values applying the real test current measured by the station. A internal DSP filter also performs the automatic compensation of noise voltage disturbances affecting the measuring circuit. The instrument permits also measurement of earth resistance with 3-wire method and ground resistivity with 4-wire Wenner method. All results can be saved into an internal memory and downloaded to PC through Windows software

GSC53N

GSC53N is a strong evolution equipment to perform complete test and verify on electrical installations according to the most common safety standards (IEC 61557, VDE 0100, BS7671) and for power quality analysis on general electric networks. This meter, sure, with high accuracy, dedicated to each proof technicians is a very user-friendly instrument thanks to the new integrated features as the setting up to 5 predefined recordings on power quality (EN50160, Voltage Anomalies, Harmonics, Start-up and Power & Energies) for a easier and rapid analysis of the most common situation on plants, the use of flexible clamp transducers with integrated control logic. In this way disappear the problem of replace batteries of power adaptor typical of transducers with external control logic. GSC53N model can perform Line/Loop impedance and prospective short circuit current measurements with high resolution (0.1mOhm) with use of IMP57 optional accessory. In this way is possible realize important measures strictly nearly to power transformer
