HT4012

HT4012 clamp measure AC current up to 400A, AC/DC voltage, resistance and continuity. Thanks to the practical rubber cap to be mounted on the jaws (patented), it’s possible to hold test leads while measuring and have one hand free to work. The instrument is complying with IEC/EN61010-1, CAT III 600V and is ideal for simple measurements both in domestic and industrial environments

HT4010

HT4010 clamp measure AC current up to 600A, AC/DC voltage, resistance and continuity. The meter is designed with a built-in sensor for AC voltage detection without contact signalled by a red LED and acoustic buzzer. The instrument is complying with IEC/EN61010-1, CAT III 600V and is ideal for simple measurements both in domestic and industrial environments

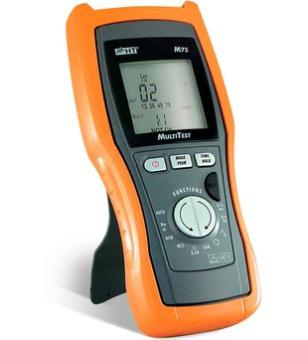

M75

M75 is an innovative instrument which joins together DMM, Safety Tester and LAN checker features inside a compact and ergonomic user-friendly structure and with a extremely reduced weight (800g only!). The DMM is a professional instrument with TRMS measurement of AC/DC voltage, AC Current (through external clamp), Resistance and Frequency. Additional features are MAX/MIN/AVG function, HOLD function and PEAK detection with Response Time of 1ms, useful for surge currents detection.

The Safety Tester features allow to perform test on electrical plants according to VDE0413. Measures of Continuity, Insulation, Global Earth value (also with 0.1 resolution), RCDs test, phase sequence indication and phase coincidence (using only one Test Lead even just touching even insulated cables or two Test Leads) will be easily performed thanks to this new extremely compact instrument. An innovative function (AUTOTEST) automatically performs main safety checks in the plant (Earth Resistance measurement, RCD Test, Insulation Test) just connecting the instrument to a socket and pressing the GO button. The instrument will give you a final response (OK or NOT OK) about the safety of the plant under test.

Finally the LAN checker function allows you to check if the wire mapping in a LAN cable is correct or not with easy indications about the found errors, which will guide you though the troubleshooting. M75 is completed by a modern selector function knob, a large numeric display for easy readings of measurements and a protection rubber holder to prevent accidental damaged

HT8100

HT8100 is a professional meter performing measurements as TRMS DMM as well as process calibrator generating 0-20mA and 4-20mA DC current signals. As DMM the instrument carries out AC/DC/AC+DC voltage measurements up to 1000V and AC/DC/AC+DC current measurements up to 1A. Under the current generation mode you can manually select between 0-20mA and 4-20mA as well as automatic ramps on output signal. It is capable of measuring also current absorbed by external transducers simulating a current adjustable within the whole measuring range. The instrument can store measurement results into an internal memory and is designed in compliance with safety standards IEC/EN61010-1 according to CAT III 1000V and CAT IV 600V with double insulation protection. Each function can be selected through corresponding keys. This instrument is typically applicable in the automation field

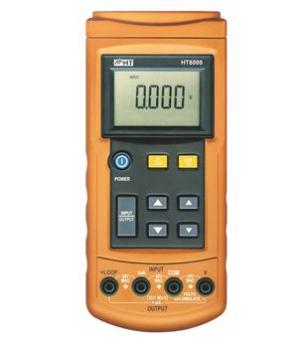

HT8000

HT8000 is a portable digital process calibrator designed to generate and measure DC voltage and DC current up to 10V and 24mA respectively. On DC current generation it is also possible to display percentage values corresponding to current settings (0% = 4mA, 100% = 20mA). The instrument permits also to effect measurements of current absorbed by external transducers and simulate a transducer with current adjustable within the whole measurement range. HT8000 is designed in compliance with IEC/EN 61010-1 safety standards, provided with double insulation protection and each feature can be selected from the control panel. This model is ideal for the most common industrial appliances and typical laboratory activities

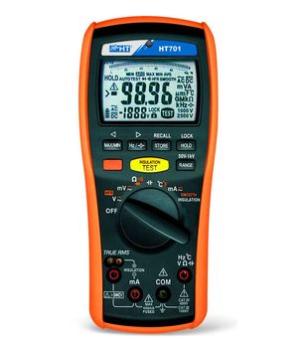

HT701

HT701 model is a TRMS professional multimeter designed to perform basically AC/DC voltage measurements up to 1000V, AC/DC current measurement up to 400mA more than resistance, continuity test, diode test, frequency, capacitance, and temperature with type K probes as sub-features.
The instrument can be used also as insulation tester with test voltage selectable up to 1000VDC and have a internal memory for saving data. The HT701 is designed in compliance with IEC/EN 61010-1 safety standard with double insulation protection in CAT IV 600V and CAT III 1000V. The model have a LCD display with bargraph and the Auto-backlit feature for automatic enable of backlight depending on the environment darkness conditions. Other features are HOLD function, MAX/MIN/AVG functions and Auto Power OFF feature is integrated to preserve the internal battery after 20 minutes of idleness

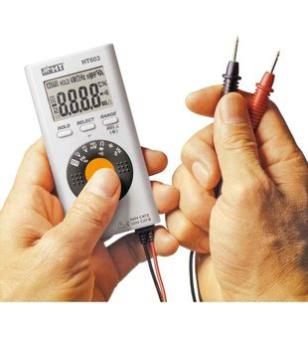

HT603

HT603 model is a digital multimeter with modern layout, easy to use and extremely compact thanks to its integrated test leads. The instrument allows you to perform AC/DC voltage, resistance, continuity test, frequency, duty cycle, diode test and capacitance measurements

HT410

HT410 model is a digital multimeter designed to perform basically AC/DC voltage measurements up to 1000V, AC/DC current measurement up to 10A more than resistance, continuity test, diode test, frequency, capacitance, duty cycle and temperature with Pt100 and Pt1000 probes as sub-features. The meter is in compliance with IEC/EN 61010-1 safety standard with double insulation protection in CAT IV 600V and CAT III 1000V. HT410 have a LCD display with bargraph and each measurement function can be selected with a rotate selector which permits also to avoid wrong connections. Other features are HOLD function, MAX/MIN functions. and Auto Power OFF feature is integrated to preserve the internal battery after 10 minutes of idleness

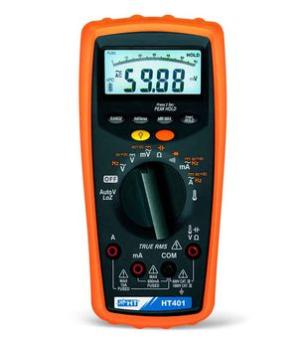

HT401

HT401 model is a TRMS professional multimeter designed to perform basically AC/DC voltage measurements up to 1000V, AC/DC current measurement up to 10A more than resistance, continuity test, diode test, frequency, capacitance, and temperature with type K probes as sub-features.
Some relevant features are also the AC+DC mode which can be used to consider the DC components overlapped to a generic alternate signal and the AC/DC voltage measurement with low input impedance in way to reduce the capacitive influence of adjacent conductors during a voltage test.
The meter is designed in compliance with IEC/EN 61010-1 safety standard with double insulation protection in CAT IV 600V and CAT III 1000V. HT401 have a LCD display with bargraph and each measurement function can be selected with a rotate selector which permits also to avoid wrong connections. Other features are HOLD function, MAX/MIN/PEAK functions and Auto Power OFF feature is integrated to preserve the internal battery after 20 minutes of idleness

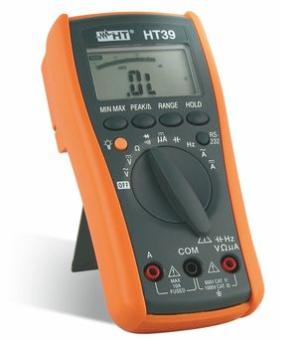

HT39

HT39 model perform basically AC/DC TRMS voltage measurements, DC/AC TRMS current measurements in totally autorange. AC voltage and current Peak values such important in industrial environments. This model is also provided with RS-232 interface for PC connection and real-time visualization of electrical parameters. In this way (with optional Windows software) recordings values with selectable sample period are possible. The meter is designed for achieve CAT III 1000V and CAT IV 600V, with Class 2 protection (double insulation), according to EN 61010-1 safety Standard and have a internal fuse protection on input current. HT39 is fitted in a rubber holster for protection by hurts and a practical support for easy to use in horizontal position.
HT39 have a large LCD 4 digit display (4000 counts) an analogical bargraph and backlight features for easy readings also in dark environments and each measurement function can be selected with a rotate selector at 10 positions. Other features are MAX and MIN measurements, HOLD function, manual range selection and Relative measurements. An Auto Power Off function is integrated to preserve the internal battery after 30 minutes of idleness

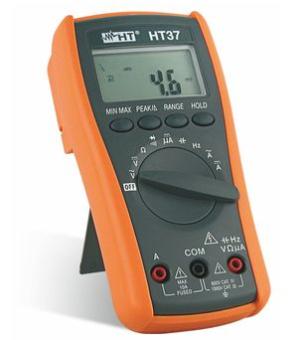

HT37

HT37 perform basically AC/DC TRMS voltage measurements , DC/AC TMS current measures in totally autorange and AC voltage and current Peak values such important in industrial environments. The meter is designed for achieve CAT III 1000V and CAT IV 600V, with Class 2 protection (double insulation), according to EN 61010-1 safety Standard and have a internal fuse protection on input current. HT32 is fitted in a rubber holster for protection by hurts and a practical support for easy to use in horizontal position. HT37 have a large LCD 4 digit display (4000 counts) with analogical bargraph and each measurement function can be selected with a rotate selector at 10 positions. Other features are MAX and MIN measurements, HOLD function, manual range selection and Relative measurements. An Auto Power Off function is integrated to preserve the internal battery after 30 minutes of idleness

HT327

HT327 model is the top meter of family 320, which include also model HT321, HT322 and HT326, designed on safety measure category CAT IV 600V.
The meter performs basically Voltage DC/AC TRMS, Current DC/AC TRMS up to 10A measurements and resistance, test continuity, diode test, capacitance, frequency as sub-features. HT327 is in compliance to EN 61010-1 safety standard with double insulation protection.
HT327 meter have a large LCD display with backlight and each measurement function can be selected with a rotative selector at 10 positions.
Other features are HOLD function, RELative function, MAX/MIN function, PEAK measurement and manual range selection. An AutoPowerOff function is integrated to preserve the internal battery after 30 minutes of don't work.

HT326

HT326 model is designed on safety measure category CAT IV 600V. The meter performs basically Voltage AC/DC, Current AC/DC up to 10A measurements and resistance, test continuity, diode test, capacitance, frequency and duty cycle as sub-features. HT326 is in compliance to IEC/EN61010-1 safety standard with double insulation protection. HT326 meter have a large LCD display with backlight and each measurement function can be selected with a rotate selector at 10 positions. Other features are HOLD function, Relative function and manual range selection. An Auto Power Off function is integrated to preserve the internal battery after 15 minutes of idleness

HT322

HT322 model is one of meter of last family 320, which include also model HT321, HT326 and HT327, designed on safety measure category CAT IV 600V. The meter performs basically Voltage AC and DC measures up to 600V and resistance, test continuity and diode test as sub-features, more than temperature measurements °C/°F with external type K probes. HT322 is in compliance to EN 61010-1 safety standard with double insulation protection.HT322 meter have a large LCD display and each measurement function can be selected with a rotative selector at 6 positions. Other features are MAX measurement, HOLD function and manual range selection. An AutoPowerOff function is integrated to preserve the internal battery after 15 minutes of don't work.

HT321

HT321 model is the basic meter of last family 320, which include also model HT322, HT326 and HT327, designed on safety measure category CAT IV 600V.
The meter performs basically Voltage AC and DC measures up to 600V and resistance, test continuity and diode test as sub-features.
HT321 is in compliance to EN 61010-1 safety standard with double insulation protection.HT32 meter have a large LCD display and each measurement function can be selected with a rotative selector at 6 positions.
Other features are MAX measurement, HOLD function and manual range selection. An AutoPowerOff function is integrated to preserve the internal battery after 15 minutes of don't work.
