Optical digital tachometer for speed measure of mechanical parts with or without contact HT2234N

HT2234N model it’s a digital portable meter which can be perform accurate speed measurements of rotating mechanical element (rotate disks, motor parts, etc...) with direct or without contact using a laser emission ray transmitted and received from the object under test. As auxiliary feature HT2234N have a internal events counter very important for example on end of line controls of a factory. HOLD and MIN/MAX/AVE features are also performed by meter. A wide number of accessories are also included for speed measures with direct contact with the object.

Professional system for finding grounding cables and pipes HT-5000

Civil engineering work is accelerated, earth-moving machines are used efficiently and the risk of accidents is minimised thanks to the HT-5000 meter. This unit is especially designed to know the position and the depth of underground pipes and cables or cabling plans in a very quick and easy way. The model is composed by a Transmitter and a Receiver and the principle used is the propagation of a electromagnetic field inside a object crossed by a signal generated with a Direct coupling (finding energized or not energized objects with accessible parts) and Inductive coupling (signal spread by transmitter by integrated antenna) for finding of not accessible parts (e.g: earth-moving areas). The tracing can be performed also in Passive mode by the use of receiver only in order to locate cable or pipes crossed by 50/60Hz electrical current or radiofrequency signals. Both transmitter and receiver are designed with IP56 (protection by dust and water) for typical external “in field” environment and a wide number of optional accessories are available also for finding of non metal objects.

적외선 거리측정기 DM50

The model DM50 is designed to measure distances between two points in a simple, fast and efficient way thanks to the integrated laser pointer and small size which make it a completely portable tool for use in every situation and in any application (buildings, electricity sector , hobbies, etc...) where it may be necessary to perform a measure of linear length. The tool also allows you to perform calculations of areas and volumes and the indirect measure of heights by using the principle of mathematical theorem of Pythagoras. A practical side button enables the activation of measures quickly with the help of a small bubble level air for a perfect alignment of objects in the test. The management of simple operations with the internal memory (sums and subtractions) and a backlight display complete the features available for the instrument

HT157

HT157 is a compact, strong and reliable Class 1 sound level meter for detection and recording of equivalent noise level, Leq, Peak value measurements, control of sound level, acoustic pollution, etc. suitable to certify environmental noise level in working areas according to national regulations in force. Thanks to a powerful microprocessor and wide measuring range from 25 to 140 dB it is possible to effect simultaneously multiple functions (statistical analysis, 24 hours, Integral Leq analysis). This model permits to perform detailed noise spectrum analysis with internal octave band and 1/3 octave band digital filters and is provided with an internal memory for saving recording results. The transfer of data to PC is carried out through USB interface by using Windows software to display numerical, graphic and statistic data. The instrument is supplied with hard carrying case a portable Class 1 calibrator for preliminary checks before starting any measurement

HT155

HT155 is a compact, strong and reliable Class 1 sound level meter for detection and recording of equivalent noise level Leq, Peak value measurements, control of sound level, acoustic pollution, etc. suitable to certify environmental noise level in working areas according to national regulations in force. Thanks to a powerful microprocessor and wide measuring range from 25 to 140 dB it is possible to effect simultaneously multiple functions (statistical analysis, 24 hour analysis, integral Leq analysis). The model is provided with an internal memory for saving recording results and USB interface for transfer of data to PC by using Windows software to display numerical, graphic and statistic data. The instrument is supplied with hard carrying case and a portable Class 1 calibrator for preliminary checks before starting any measurement.

QUICKLAN6055

QUICKLAN 6055 permits to perform quickly wire mapping test of LAN networks RJ45 twisted pair cables in compliance to EIA/TIA 568A/B. The meter check all eventual wrong connections (crossed, split, inverted couples, etc..), can detect problems of the cable itself (open circuits, short circuits) and shows results in a large custom display in very simple way. By using up to 8 numbered remote control units it’s also possible to detect the connection between the RJ45 sockets located in the working rooms and the ones located on the transposition panel or on the HUB. QUICKLAN 6055 is ideal for all installers who need an easy instrument for a preliminary LAN test

QUICKLAN6050

QUICKLAN6050 perform quickly wire mapping test and length measurements on LAN networks twisted pair cables (UTP, STP, FTP type) with RJ45 connector according to EIA/TIA 568B. It signals eventual wrong connections (crossed, split, inverted couples, etc...), it can detect problems of the cable itself (open circuits, short circuits) and save results inside internal memory. HT6050 can perform test also on BNC coax cables. By using up to 4 numbered remote units it’s also possible to quickly detect the connection between the RJ45 sockets located in the working rooms and the ones located on the transposition panel or on the HUB

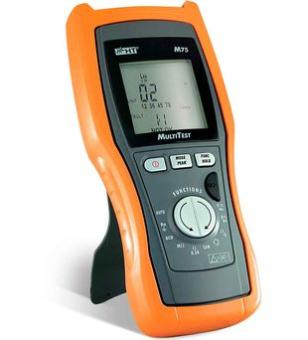

M75

M75 is an innovative instrument which joins together DMM, Safety Tester and LAN checker features inside a compact and ergonomic user-friendly structure and with a extremely reduced weight (800g only!). The DMM is a professional instrument with TRMS measurement of AC/DC voltage, AC Current (through external clamp), Resistance and Frequency. Additional features are MAX/MIN/AVG function, HOLD function and PEAK detection with Response Time of 1ms, useful for surge currents detection.

The Safety Tester features allow to perform test on electrical plants according to VDE0413. Measures of Continuity, Insulation, Global Earth value (also with 0.1 resolution), RCDs test, phase sequence indication and phase coincidence (using only one Test Lead even just touching even insulated cables or two Test Leads) will be easily performed thanks to this new extremely compact instrument. An innovative function (AUTOTEST) automatically performs main safety checks in the plant (Earth Resistance measurement, RCD Test, Insulation Test) just connecting the instrument to a socket and pressing the GO button. The instrument will give you a final response (OK or NOT OK) about the safety of the plant under test.

Finally the LAN checker function allows you to check if the wire mapping in a LAN cable is correct or not with easy indications about the found errors, which will guide you though the troubleshooting. M75 is completed by a modern selector function knob, a large numeric display for easy readings of measurements and a protection rubber holder to prevent accidental damaged

T2000

The T2000 model is designed for the resistance measurement on earth probes with ground loop method without the disconnection of parts of plants under test. This type of measurement carried out by the instrument can be used for evaluation of single rods’ resistances within an earth installation assuming they do not affect each other. The inner part of the instrument is made of 2 toroids one for current and one for voltage. The voltage toroid generates a potential (E) on the loop during resistance measurement. A current (I) is consequently generated on the loop and is measured by the current jaws. Based on the value of parameters E and I the instrument displays the resistance value R calculated as their ratio. The T2000 clamp also performs AC current up to 20A and leakage current with 0.05mA resolution and the setting of alarm thresholds on measurements is possible. The instrument is compliance with IEC/EN61010-1, CAT III 150V and is ideal for simple measurements both in domestic and industrial environments

HT9022

HT9022 is a combination of a power quality analyzer, a phase sequence/conformity detector, a clamp meter and a voltage detector in one single handy device. The advanced design of HT9022 ensures reliable and accurate measurements under a wide range of operating conditions. HT9022 is the ideal instrument for troubleshooting power quality problems, calculating power factor correctors, recording energy consumption, recording DC power, etc. Unlike the data loggers that take snapshots of the electrical parameters in regular intervals, losing what happens between an interval and the next, HT9022 continuously records all electrical parameters as a true power quality analyzer. The internal memory enables long-term recording for further download to (and analysis at) a PC, a PDA or a smartphone via Bluetooth connection. HT9022 is flexible and portable to grant the user the most reliable measurements with an easy-to-use interface
